View Data From Your Custom Built Application Inside HubSpot

Using HubSpot custom cards, you are able to view outside data from other systems inside of HubSpot on associated records. You can see in the image below what customized cards would look like pulling in bugs reported from an app or website.

Current State

Business Problem

• Employees are spending lots of time looking in two separate computer systems to find the information they need
• There are many internal information requests across teams or roles

Business Impact

• Low overall employee effectiveness
• Low ability to respond quickly, and accurately to opportunities

Technical Cause

• Teams have specialized systems with specific features that are critical to each team
• There is an intentional barrier between systems due to data structures, or processing requirements

Future State

Your users should have the experience of,

• HubSpot users can see information from another system inside HubSpot
• HubSpot users can trigger a series of simple actions between systems (optional)



---

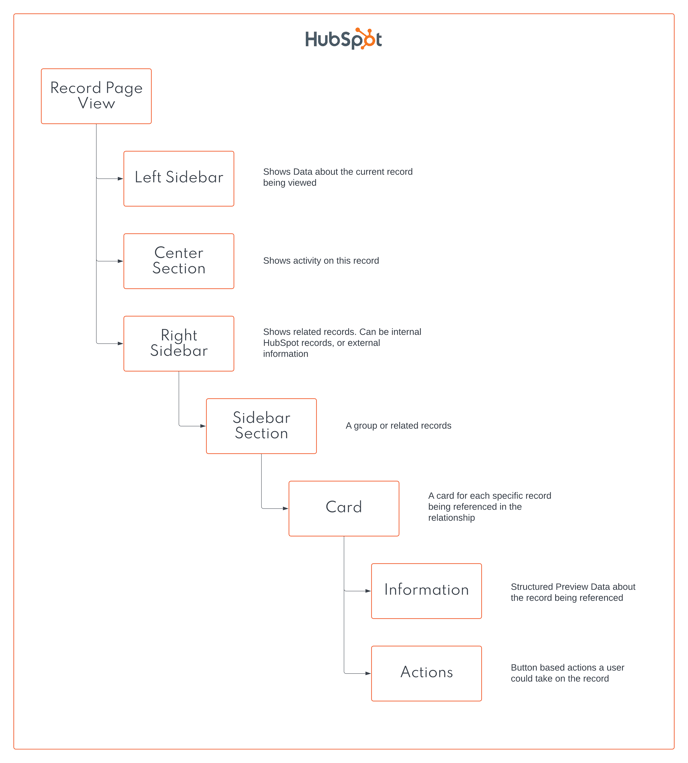

Card Layout



---



Architecture Patterns

The following diagrams show examples of system architecture to view outside data in custom cards in HubSpot. We can provide deeper technical discussions, and ideation sessions with your team by request.

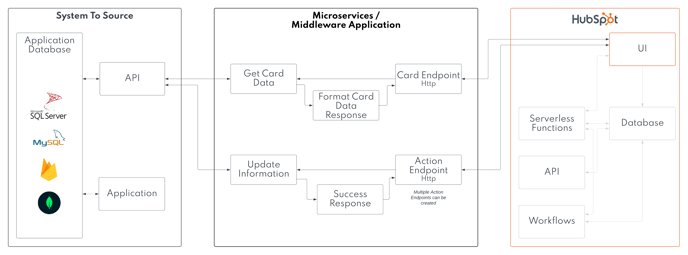

Connecting Via API

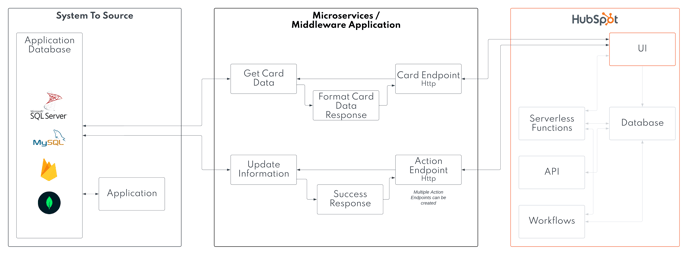

Connecting Via Direct Connection

---



Data Mapping

You will need to determine a key that exists in both systems. Examples might be

Contacts

• HubSpot Contact ID
• Other system Contact ID
• email address

Companies

• HubSpot Company ID
• Other system Company ID
• Domain name
• EIN

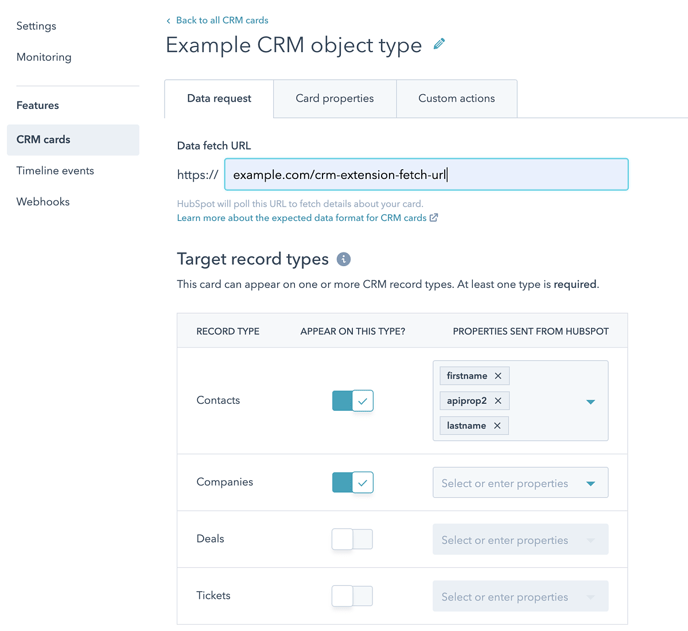

When configuring the custom cards, you create a schema for the cards. HubSpot will use this schema to determine what properties it sends in the http endpoint of your middleware application.



---



Error Handling
